Consumables
Model : Sobha Make 422S
Direction of Flow : Vertical
Working area in feet : 4’ x 2’ x 2’
Noise Level : < 56 decibel +/- 5 %
Velocity : 90 Feet/Minute +/- 20
HEPA Filter Separators : Mini-pleat no separators
HEPA Filter Retention : 0.3 Micron
HEPA Filter Efficiency : 99.97%
PRE Filter Retention : 10 - 15 Micron
PRE Filter Efficiency : 99.97%
Three independent imported microprocessor Based Temperature Controller accuracy of ± 0.3 (Min 7ºC Above Ambient to Set), 95% ±5% of Uniformity on the Table.
Model : With Capture Pro Software.
CORE FEATURES:
Resolution : 2 million
Exposure : 1ms to 10s
Chip : Micron MT9M001
Pixel Size : 5.2μm x 5.2μm
Data readout : color 24 bits
Frame :12fps(1280 x 1024)
Sensor : 1/2 color CMOS camera
Data Interface : USB2.0
Optical Interface : C-mount
Power Requirements : 110-220V
Weight : 250g
Warranty : 1 year
Operating temperature : 0 to 60C
Direct heat. 160 liter, 6.0 cu. ft. on a minimal footprint.
IR CO2 sensor with automatic auto-zero programmable function to ensure accurate calibrated measurements.
Seamless chamber. 25mm Access port.
Perforated shelving.
Sealed inner glass door for atmosphere conservation.
RS-232 Communications port. Stackable up to two units high.
Large volume humidification pan with dedicated, independent heater.
Quick and comprehensive chamber cleaning made effortless.
HEPA filtration of gas supply inlets to minimize contamination risk.
4-position shelving rack with 4 shelves.
Heracell 160i Co2 Incubator Unit Price :-

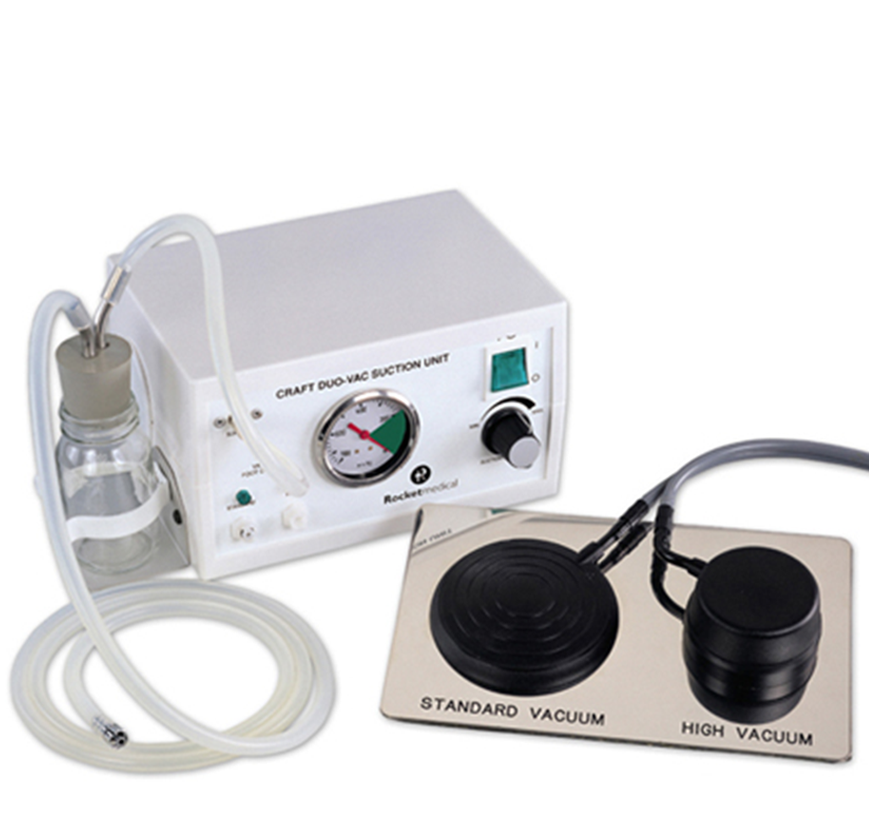

Ovum Aspiration Pump with Foot Operated Switch with Vacuum gauge and regulator.
SPECIFICATIONS:
Low Pressure : 0-550mm
Hg = 0-666 mbar
Volume of overflow vessel : 2x100ml
Connecting for aspiration tubing : 2 to 4 mm
Power Supply : 230V
Power Frequency : 50/60 Hz
Power Point : 50 VA
Nominal Current : 220mA
Power Line isolation : 0.315 AT
Model: AIRplus®
Make: Sobha Make IVF
Particle Retention: 0.3 Micron & Above
Air Circulation Capacity: 7 to 10 times/hour
Cleanliness Class: 100
Noise Level: 56 decibel + 5 %
C.F.M: 150 + 10 %
Motor Blower: Imported Centrifugical Type
Construction: Fully Made out of Powder Coated M.S.
Ducting Flexible PVC food grade with copper wiring

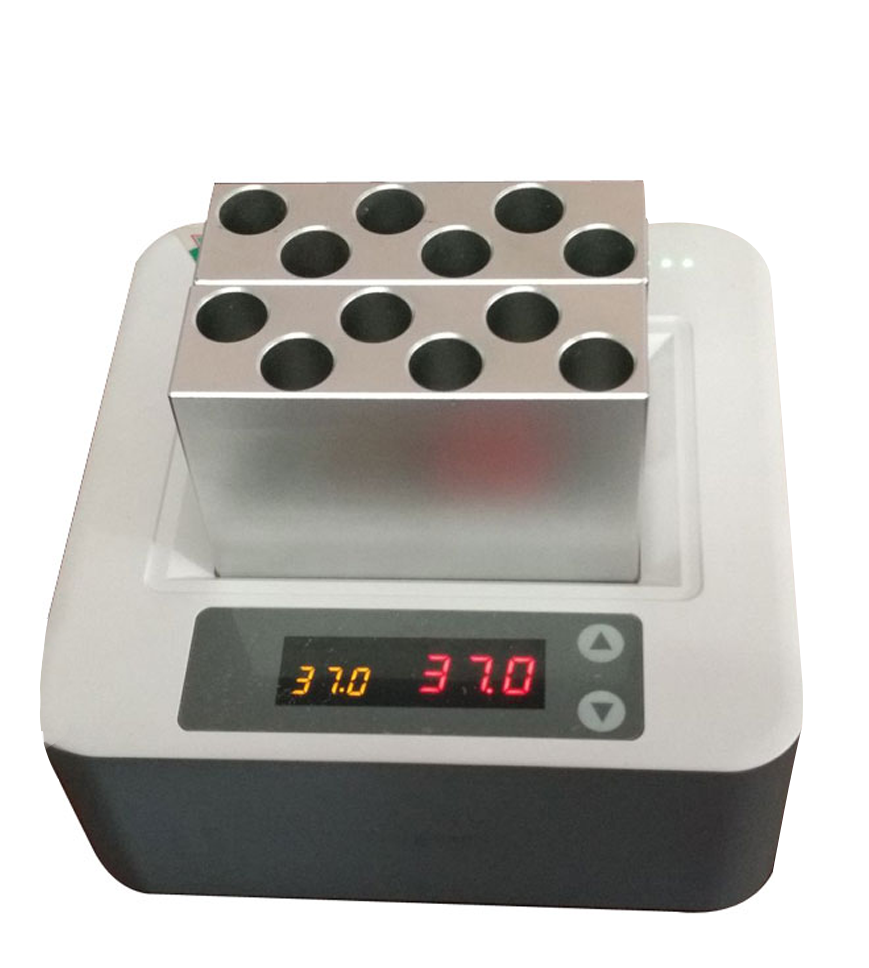

Sobha Make Digitally control and timer function regulated by Microprocessor Controller, Fast heating and accurate temperature ( +0.20C accuracy) over the entire heating area encased in stainless steel with solid aluminum hotplate Scratch-resistant, hard-coated hotplate.
Maximum operating temperature from ambient to 400C Digital temperature display (Desired/Actual value) accurate to 0.1°C.
Exterior dimensions: L255mm x W155mm x H115mm
TA-55 CRYOCAN, IBP make, 54 liter capacity with rubber rings and pad (For refilling and transport of Liquid Nitrogen)
J - 12 CRYOCAN, IBP make liter capacity with canisters (For large capacity & storage of specimens)
TA – 26 Cryocan, IBP make, 25 liter capacity with rubber rings and pad (For refilling and transport of Liquid Nitrogen)
BA – 11 Cryocan , IBP make liter capacity with canisters (For 10.5 litres capacity & storage of specimens
SZ61 Tr Zooming Body (Trinocular)
Zoom ratio: 6.1:1,
Total Magnification: 3.35X - 300X (depending on eyepiece & objective),
Eyepiece inclination 45º Inter pupillary distance 52-75mm,
Zoom range 0.67-5X,
Working distance 115mm, with inbuilt 1X objective.
consisting of:
Eyepiece Lens: C-W10XB Eyepiece 10X with Diopter Adjuster, Rubber Eye-Shields, Reticle Lead. C-FM Reticle M (Micrometer) used with C-W Eyepiece 10x
Stand: Hybrid Halogen Stand (For Episcopic & Diascopic)
Biopsy mode allows accurate laser drilling along a straight or curved drawn line with excellent accuracy and a unique computer controlled laser with guaranteed laser alignment.
Lowest laser pulse energy for minimal energy near critical cells. Exclusion Zone™ feature ensures cell safety. Intuitive RI Viewer software package with streamlined interface. Programmable foot pedal controls software and laser functions including the new biopsy mode
Double Stage Fully S.S
The Sukratara Sperm Counting Chamber from India, for accurate method of Sperm Counting With Cover Slip.
Make: Origio
Model: Planner
• Designed to maintain consistent culturing environments for optimum Temperature and pH control.
• Network connectivity for data output
• Base plate of chamber designed to fit commonly used IVF dishes
• Integrated battery backup for 2 hours
• Reduced oxygen culture capability
• The BT37 works with any defined premixed gas of choice to achieve the proper CO2 and reduced O2 environment
• Optional fitted pH monitoring
• Constant monitoring of CO2 concentration in the chamber
• Pip-in Window to check water level & Gas Flow without disturbing culture
• Dishes per chamber:
4 x NUNC 4 well dishes;
4 x NUNC 60 mm dishes;
10 x NUNC 30 mm dishes;
4 x MINITUB 5 well dishes;
4 x FALCON 60 mm dishes;
4 x FALCON 60mm single -
well “organ culture” dishes
Sobha Medical Make Utility Tables Stain Less Steel made (304 Grd.)
Heavy Duty,
Fully Detachable,
Highly Durable.
Media: Fibrous Activated Carbon
Media Supports: Prolypropylene
Cage, Core, End Caps: Prolypropylene
O-Rings: Silicone
Sealing: Thermal End Capping
